Numerical control system
Position: Home > Product center > Numerical control system
Laser cutting machine


System Introduction:

1. The fiber laser cutting machine control system specially developed for the ventilation industry has two models: upgradeable [standard single platform] and full-function [automatic discharge rolling platform].

2. High continuous production and processing efficiency, saving labor, rolling platform processing duct when one equipment is equivalent to the processing efficiency of two ordinary cutting machines. One person topped two people, one top two.

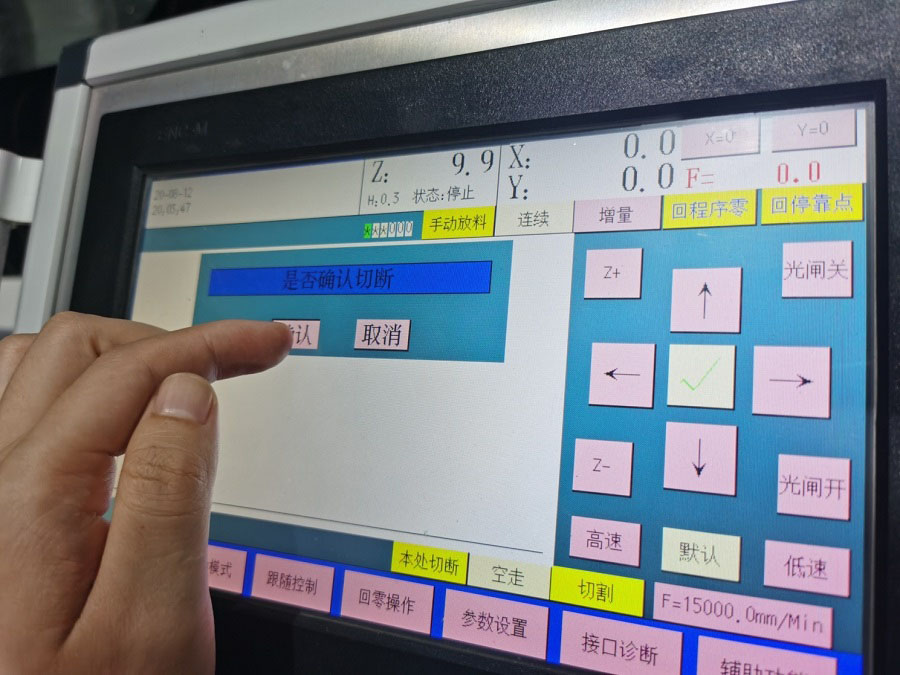

3. The first all-touch flat panel CNC laser special industrial controller in China. Features a 10.2-inch color high resolution wide format LCD screen. No panel buttons, in line with the trend of the times and the habits of young people.

4. Fool-like operation, what you see is what you use, people who have previously operated the plasma cutting machine master it in 20 minutes. People without any foundation learn to operate in 1 hour. The system separates the equipment between the operator and the layout designer. It does not occupy any machine production time, and improves the equipment utilization rate.

5. The special processes such as automatic precision feeding, cutting, micro-connection, micro-lifting, and extraction of the frame realized by this system can be completed with one click. More useful features are being added. Many of these features are domestic firsts.

6. Perfect connection with the commonly used typesetting software in the ventilation industry, such as PM2000, LANTEK, etc., without any conversion. For .DXF generated using AUTOCAD, the underlying drawing format can also be executed directly. The system can also be combined with the professional CAM automatic nesting and typesetting software represented by our company, professional path planning and special processes Specifies that more graphics machining functions are implemented.

7. The system supports the high-precision, high-sensitivity, high-stability capacitive servo control unit independently developed by the company, which can achieve stable follow-up characteristics in any field temperature environment. At the same time, it has a one-click calibration function.

8. With empty walking, edge seeking, component jumping, direct cutting, single cutting, full reverse cutting, speed regulation during processing, convenient retreat, Practical functions such as automatic cut-off, automatic re-docking, etc.

9. Rolling platform system, in addition to supporting the leveler, rolling table joint action precision discharge, but also support power The electric material rack realizes automatic retraction and unwinding.

10. The system can optionally be equipped with the industrial field wireless data transmission module developed by the company, when the plotter generates the processing program, the processing program is wirelessly distributed to multiple devices in the factory using the sending software provided by the company on the computer. The processing program is automatically organized in the form of a processing log to achieve U disk-free production management.

11. When the user purchases the [standard single platform] system, if necessary in the future, if necessary, add a little fee, and upgrade the system to the model of the [automatic discharge rolling
