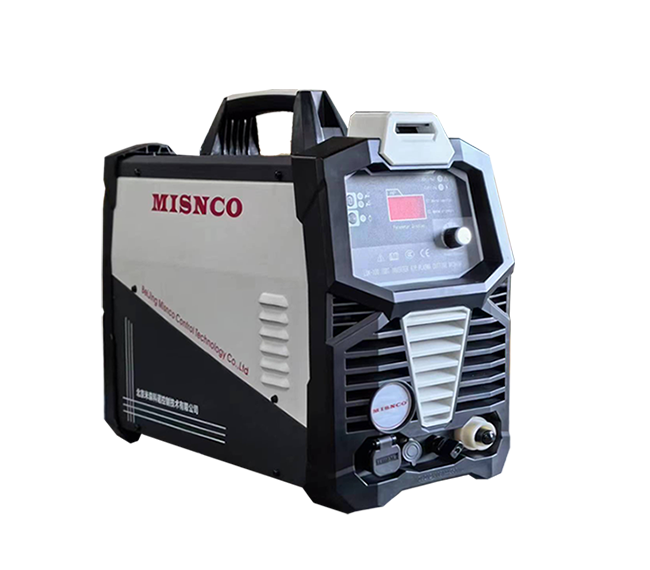

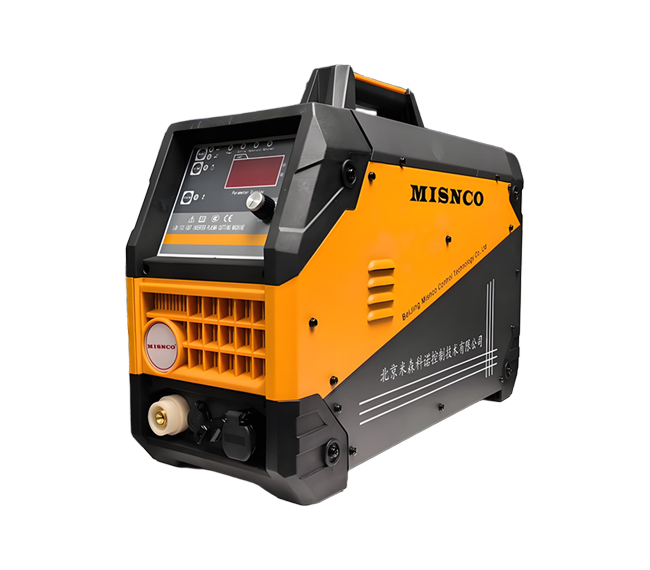

Air Plasma Cutting Machine. LGK-100IGBT

2PH-220v 3PH-220v/380v Cut/Grid/Marking/Gouge  50/60Hz 100%

Main Features

• All the important parts in this plasma cutting machine like IGBT, diode, integrated circuit, relay, current and voltage regulator are world famous brand which have high reliability;

• Soft switch technology, improve the IGBT and it`s reliability;

• 100%(40ºC)duty cycle, it is suitable for long time, heavy load, high temperature and bad circumstances;

• Inverter control power source: Small volume, little weight and energy saving;

• Current up-slope function: Reduce the impact on striking arc and decrease consumption of cutting torch parts;

• Air pressure, hydraulic pressure sensor: Protect torch from being burnt efficiently;

• Machine type setting: Arc striking signal, arc pressure signal, air supply control and arc pressure output function makes it specially suitable for CNC and robot cutting;

• Two machines parallel use is available, double the output current to cutting extra-thickness material well.
